Description

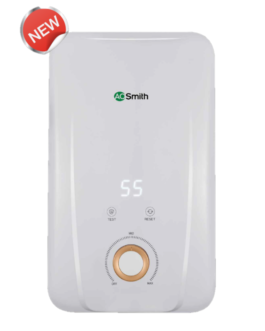

A. O. Smith ZIP Classic 7 kW Tankless Water Heater

If you want hot water without installing a large storage tank, the A. O. Smith ZIP Classic 7 kW is a compact tankless water heater designed to heat water as you use it. Instead of storing a fixed quantity of hot water, it starts heating when water flows through the unit, making it a practical option for bathrooms where space is limited and hot water is required on demand.

The ZIP Classic combines a 7 kW heating system with automatic power control, a smart display and a rotary temperature control. The result is a simple setup where you can select the required temperature and use hot water without waiting for a storage tank to heat up.

What Makes the A. O. Smith ZIP Classic 7 kW Different?

The biggest difference is the tankless design. A conventional storage geyser heats and stores water inside a tank. The ZIP Classic works differently: water passes through the heater and is heated during use.

This makes the unit particularly useful when you want a compact water heater and do not want a large storage cylinder occupying bathroom wall space.

Instant Hot Water Without a Storage Tank

When you turn on the hot-water outlet, the heater operates as water flows through it. The 7 kW heating system is designed for instant water heating rather than storing hot water in advance.

How much hot water the heater can deliver at a particular temperature depends on the incoming water temperature and the water flow. This is important when choosing any tankless water heater: a higher flow or colder incoming water requires more heating power to achieve the same outlet temperature.

Easy Temperature Control

You do not need complicated controls to operate the ZIP Classic. The heater uses a rotary knob to adjust the outlet temperature, while the smart display makes the selected setting easier to see.

The specified temperature range is 30°C to 55°C. This gives you flexibility to select a comfortable temperature rather than simply operating the heater at one fixed setting.

Automatic Power Control

The A. O. Smith ZIP Classic 7 kW also uses automatic power control. In simple terms, the heater manages its available heating power according to the operating conditions instead of simply running at maximum power all the time.

This is one of the useful features to consider when choosing a tankless electric water heater for regular bathroom use.

Compact Design for Smaller Installation Spaces

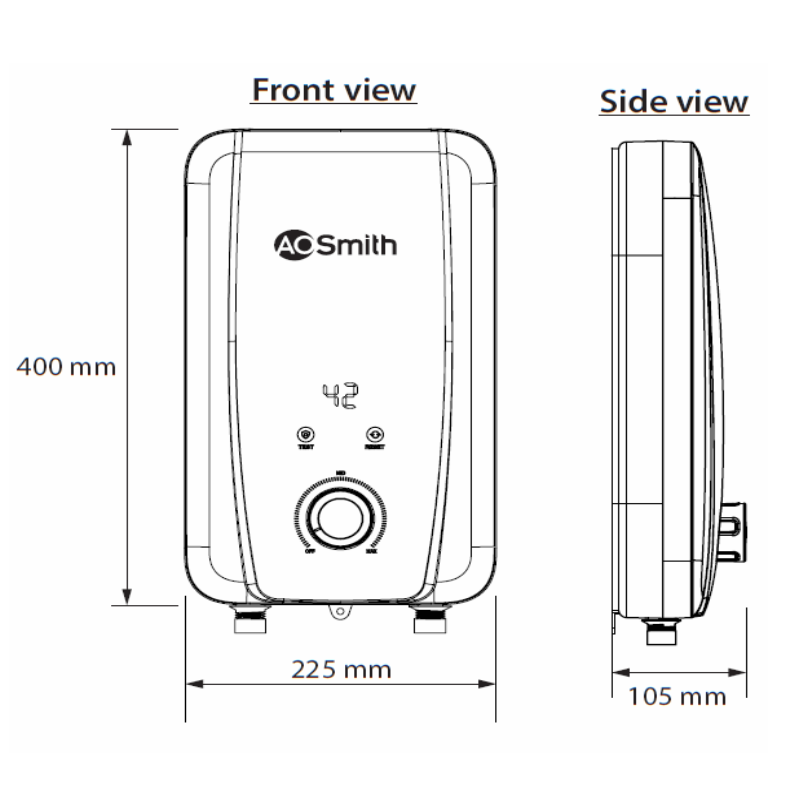

One of the practical advantages of the ZIP Classic is its compact size. The supplied product information lists the dimensions at approximately 400 mm × 225 mm × 105 mm.

The compact body can be considered for a wall-mounted bathroom installation or an under-the-counter installation, depending on the plumbing arrangement and the manufacturer’s installation requirements.

Is 7 kW Enough for Your Bathroom?

This is one of the most important questions to consider before buying a tankless water heater.

A 7 kW heater is not automatically suitable for every bathroom simply because it is an instant heater. The final performance depends on the incoming water temperature, required outlet temperature and water flow.

For a Mumbai home, for example, the incoming water temperature and the required shower flow can be different from those in a colder location. Therefore, if you are replacing an existing geyser, it is worth checking your existing electrical connection and expected water flow before ordering.

If you are unsure whether the A. O. Smith ZIP Classic 7 kW is appropriate for your particular bathroom, GeyserMart can help you check the basic electrical and water requirements before you purchase.

Electrical Requirement for the 7 kW Model

The 7 kW version is a high-power electrical appliance and should not be connected to an ordinary low-power bathroom socket.

The supplied A. O. Smith specifications list a 40 A MCB and 40 A, 30 mA AC RCCB for the 7 kW model. The electrical circuit, cable size, earthing and protective devices should be checked by a qualified electrician before installation.

This is an important point to check before buying because the heater’s suitability depends not only on your water requirement but also on whether your home’s electrical supply can safely support the appliance.

Water Pressure and Connection

The A. O. Smith ZIP Classic 7 kW uses ½-inch BSP inlet and outlet connections. The specified maximum inlet water pressure is 0.6 MPa, while the minimum water flow required to activate the unit is specified as 1.5 litres per minute.

Your plumber should check the existing water pressure, pipe arrangement and installation location before fitting the heater.

Key Features of A. O. Smith ZIP Classic 7 kW

• 7 kW tankless electric water heater
• Instant water heating without a conventional storage tank
• Smart display
• Rotary temperature control
• 30°C–55°C temperature range
• Automatic power control
• Compact design for bathroom installation
• IP25 safety class
• 1.5 litres/minute minimum activation flow
• 0.6 MPa maximum inlet water pressure
• ½-inch BSP inlet and outlet connections

A. O. Smith ZIP Classic 7 kW Specifications

Who Should Consider the ZIP Classic 7 kW?

The A. O. Smith ZIP Classic 7 kW makes sense for customers who want a compact electric tankless water heater instead of a conventional storage geyser.

It can be considered when bathroom space is limited, when hot water is required on demand, or when you prefer not to keep a large storage tank mounted on the wall.

However, the 7 kW rating should be matched to your expected water flow and electrical capacity. If you are planning to use a high-flow shower or have specific hot-water requirements, speak to GeyserMart before choosing between the 7 kW and 9 kW versions.

7 kW vs 9 kW — Which ZIP Classic Should You Choose?

The main difference between the two ZIP Classic versions is their heating power. The 7 kW model has a lower electrical power requirement than the 9 kW model, while the 9 kW version is designed with a higher heating capacity.

Your choice should therefore be based on the required water flow, desired temperature, incoming water temperature and available electrical capacity rather than choosing a model only because it has a higher kW number.

If you are unsure, contact GeyserMart and we can help you understand which version is more appropriate for your installation.

Frequently Asked Questions

Buy A. O. Smith ZIP Classic 7 kW from GeyserMart

If you are looking for an A. O. Smith ZIP Classic 7 kW tankless water heater in Mumbai, GeyserMart can help you check the product, electrical requirements and installation considerations before you place your order.

You can also compare the instant water heater range or tankless water heater range available from GeyserMart.

For pricing, availability or help selecting the right model, contact GeyserMart.

For manufacturer information and product support, visit A. O. Smith India.

Specifications on this page are based on the product information supplied for the A. O. Smith ZIP Classic. Product specifications may be changed by the manufacturer from time to time.
